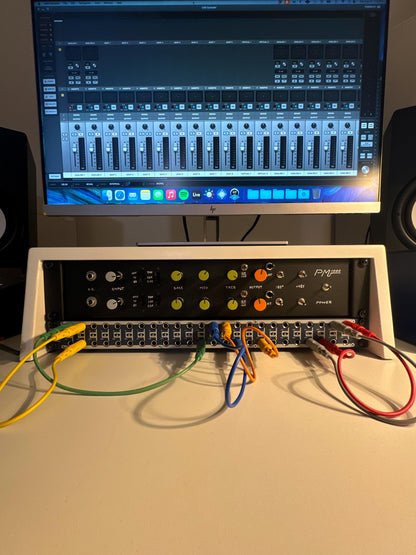

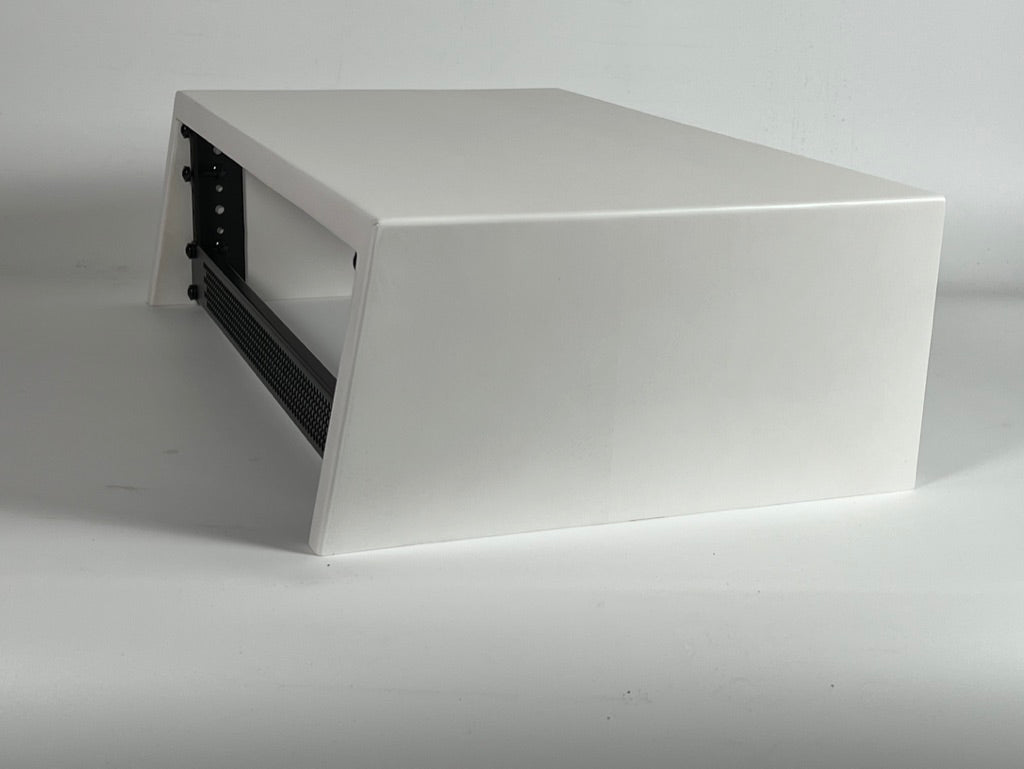

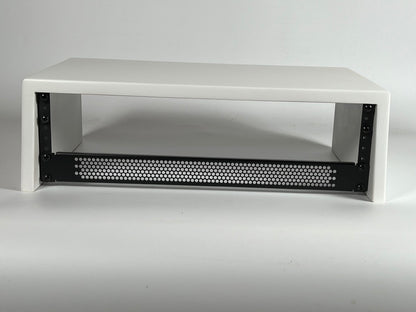

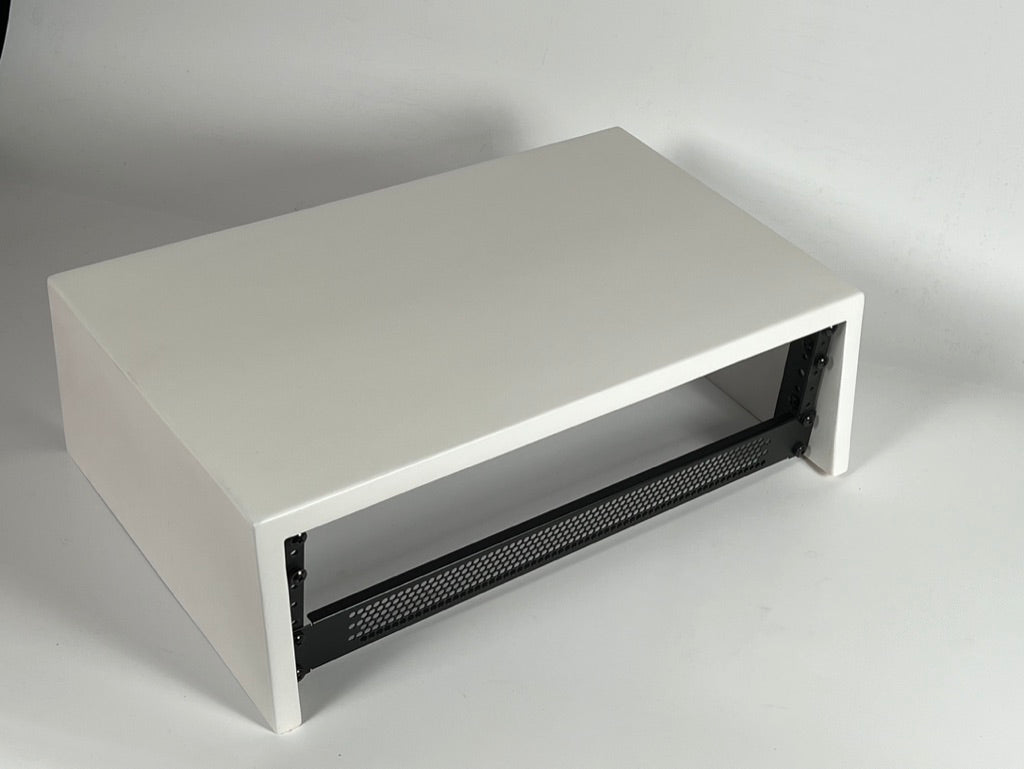

Desktop Studio Rack - Maple, Painted White
P R O D U C T ∙ D E T A I L S
This three-sided maple rack is designed with a lower profile to sit on a desk, no bottom needed. It has a pure white satin spray coating, finish in clear satin polyurethane for durability. The wood is solid maple, which sands out to a perfectly smooth surface, so great for paint, when you don't want to see any grain in the surface.
This can be built as shown with a slanted front or straight front, no bottom, or with a bottom side. Rack mounting is the same as any other of our 19" racks. All of my standard unit-sizes are available.
S T A N D A R D ∙ S I Z E ∙ O P T I O N S
• 1U to 6U (rack units) tall
• 8, 12, 16, or 20 inches deep
• standard 19" rack mount width
C O N S T R U C T I O N ∙ D E T A I L S
• constructed from 3/4" solid lumber
• all sides are joined with a 45 degree miter, making the seam almost disappear
• front and top edges are eased to about 1/8" radius

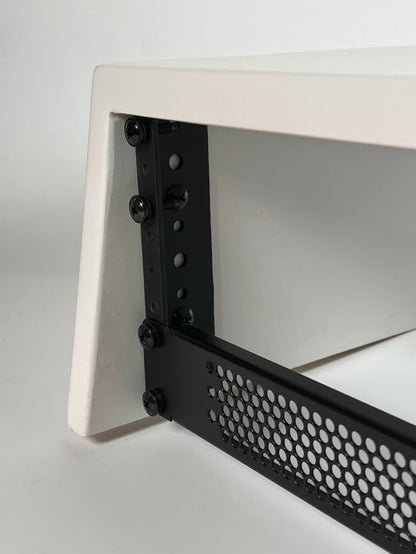

• rack rails are recessed 1/2" from the front edge at the top, and spaced 1/8" from the top and bottom
• comes fully assembled and ready to use
R A C K ∙ D I M E N S I O N S
• width for all sizes - 20-5/8"
• depth at the top, front to back - 8, 12, 16, or 20 inches deep
• height of cabinet
• 1U - 2.75"
• 2U - 4.5"
• 3U - 6.25"
• 4U - 8"
• 5U - 9.75"
• 6U - 11.5"
• 8U - 15"
• 10U - 18.5"
• 12U - 22"
• 14U - 25.5"
• 16U - 29"
U P G R A D E S ∙ A D D - O N S
We also offer a number of add-ons and upgrades to take your rack to the next level:
• rear rails
• extra screws (4 are always included for free with your rack order)
• square-hole rails and cage nuts
• matching wood filler panels
• blank filler panels
• vented filler panels
• venting slots directly in the wood
• shelves
• back-plane power distribution units
C U S T O M ∙ R E Q U E S T S
If you don't see the setup size you need in the drop-downs above, send me a message with your request and I'll do what I can to accommodate you. Ask about availability of other types of wood. I have local access to over 100 domestic and exotic wood species, so almost anything is possible.
S H I P P I N G
Shipping is FREE to the 48 contiguous United States. For Alaska and Hawaii customers, please message me for a shipping quote before ordering.
P A Y M E N T
We accept all major credit cards, as well as Paypal and Venmo.
Free shipping to 48 contiguous states
Current lead-time for this rack is 6 to 8 weeks
