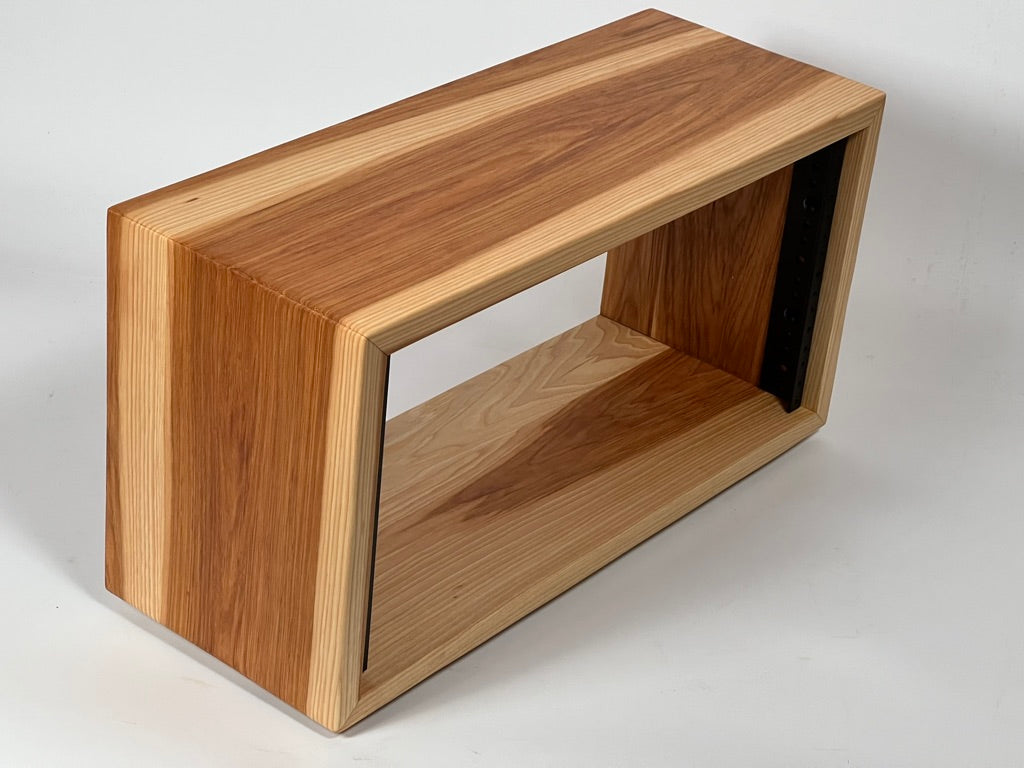

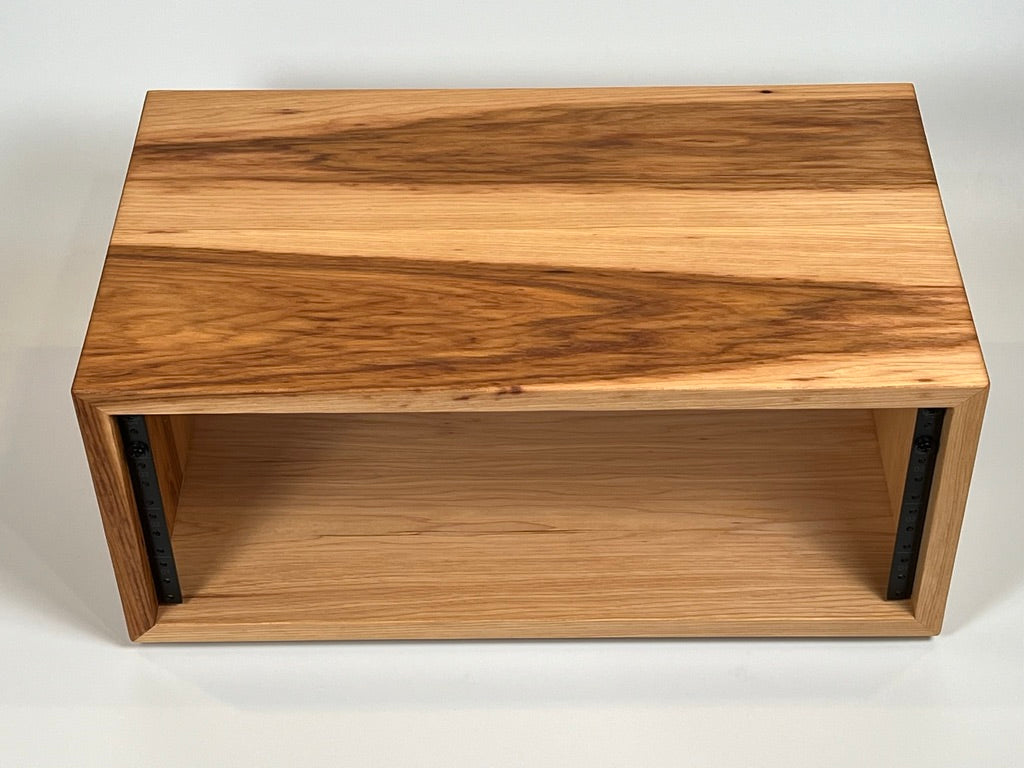

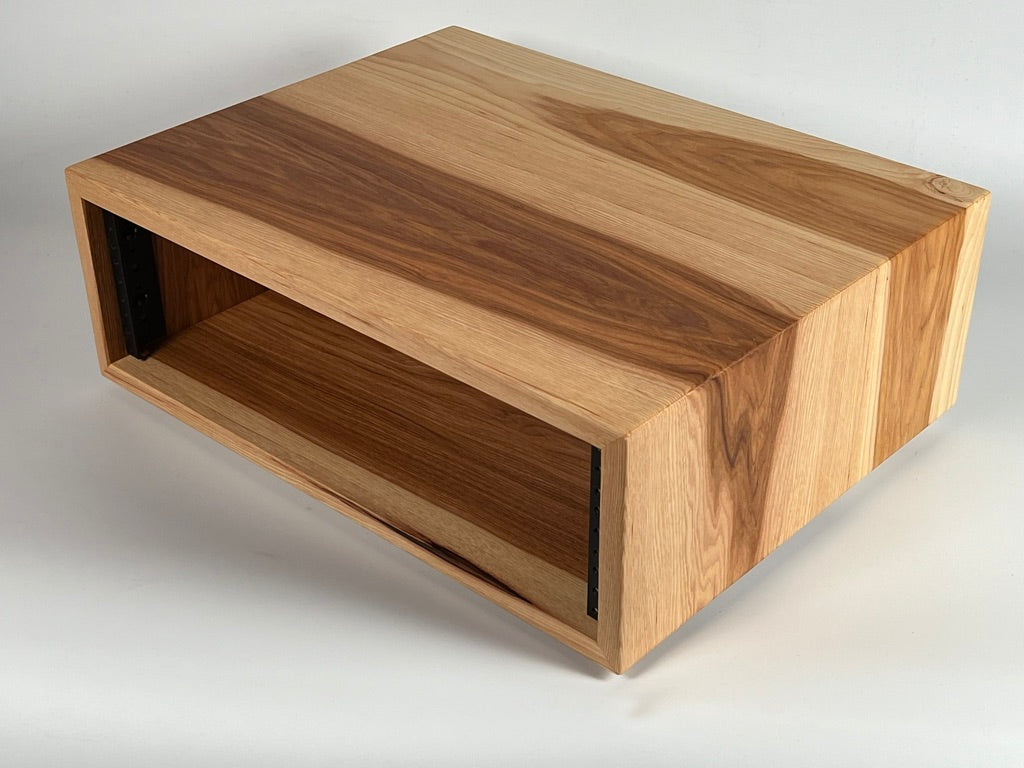

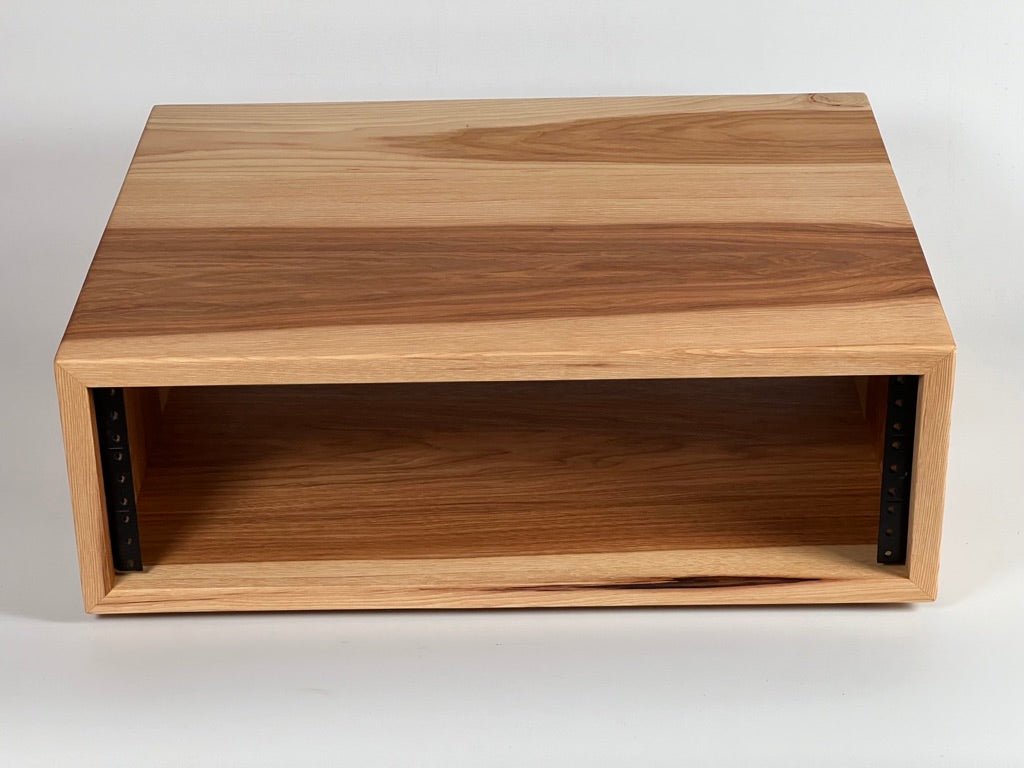

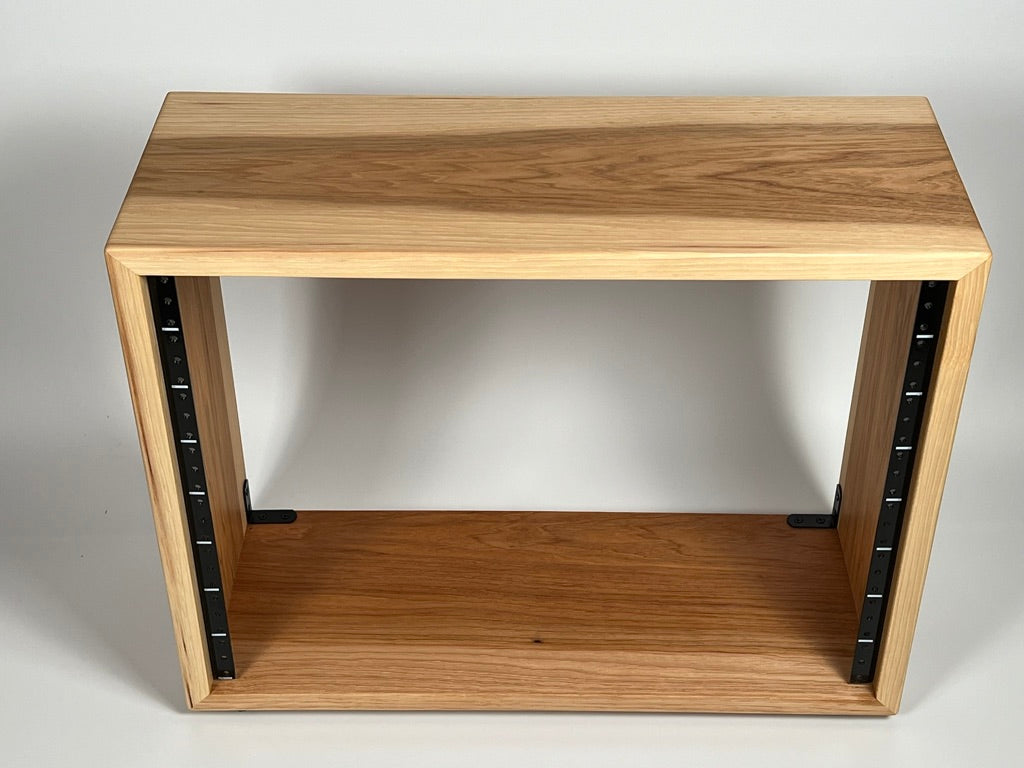

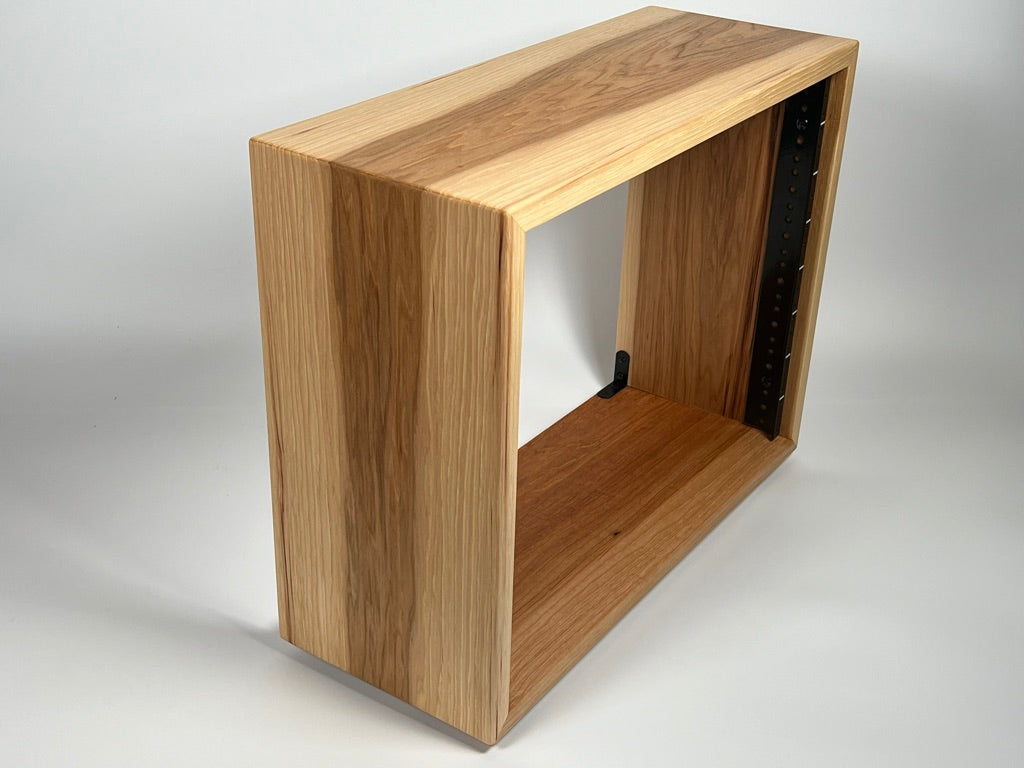

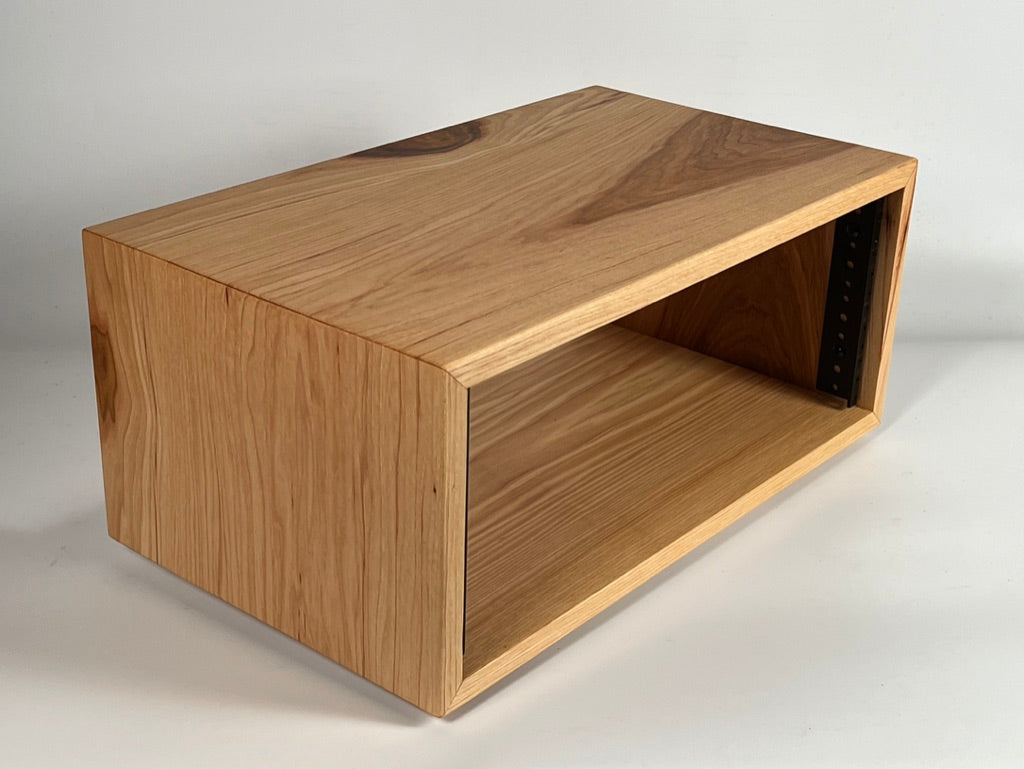

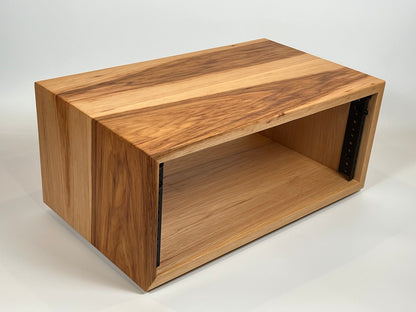

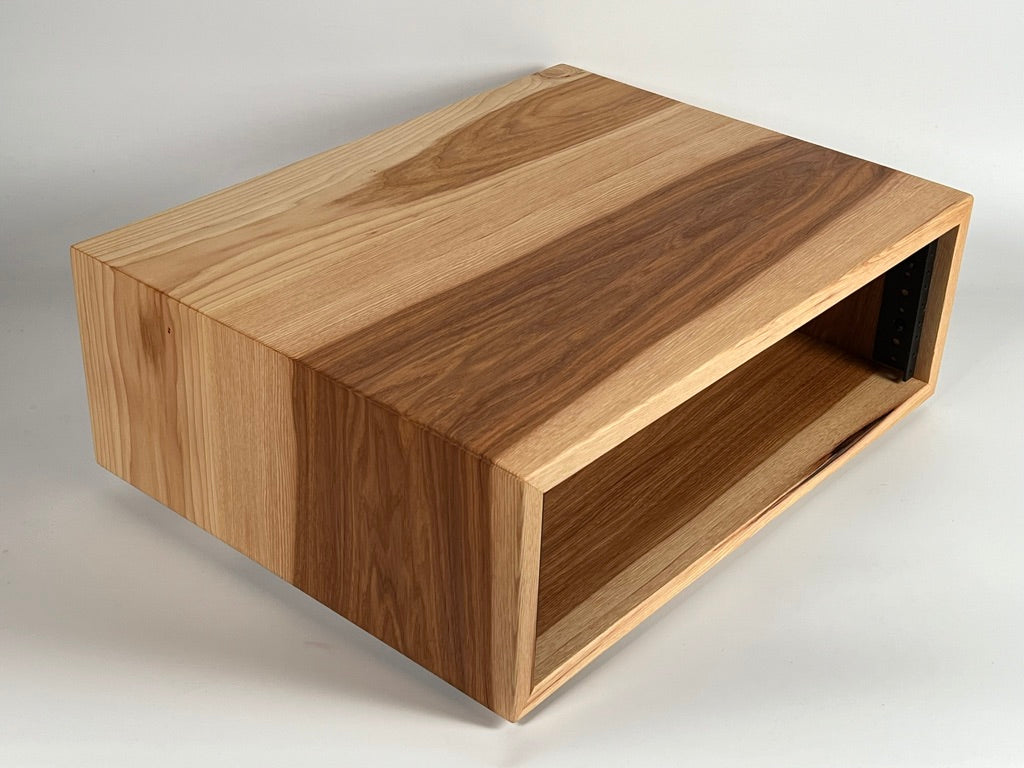

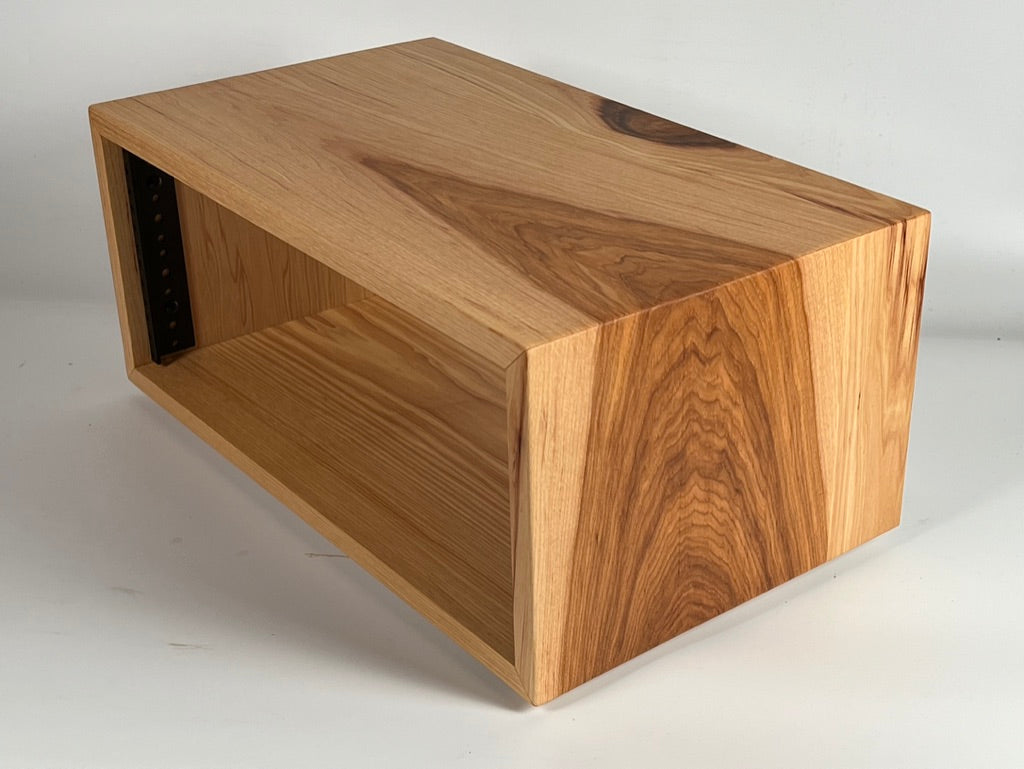

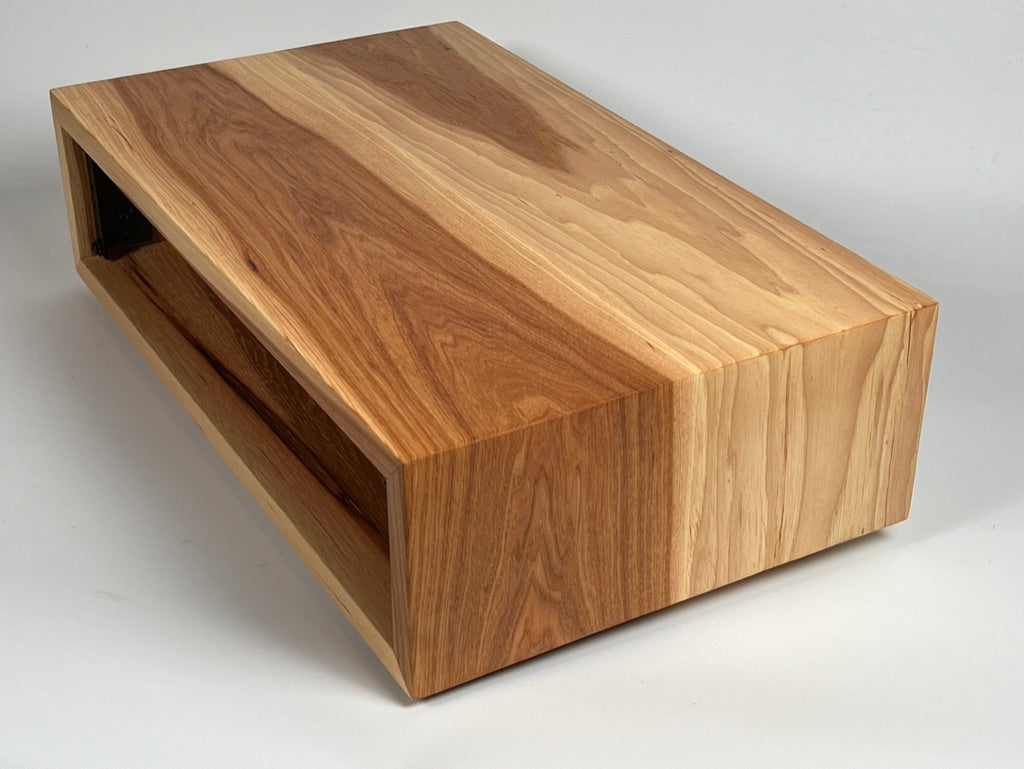

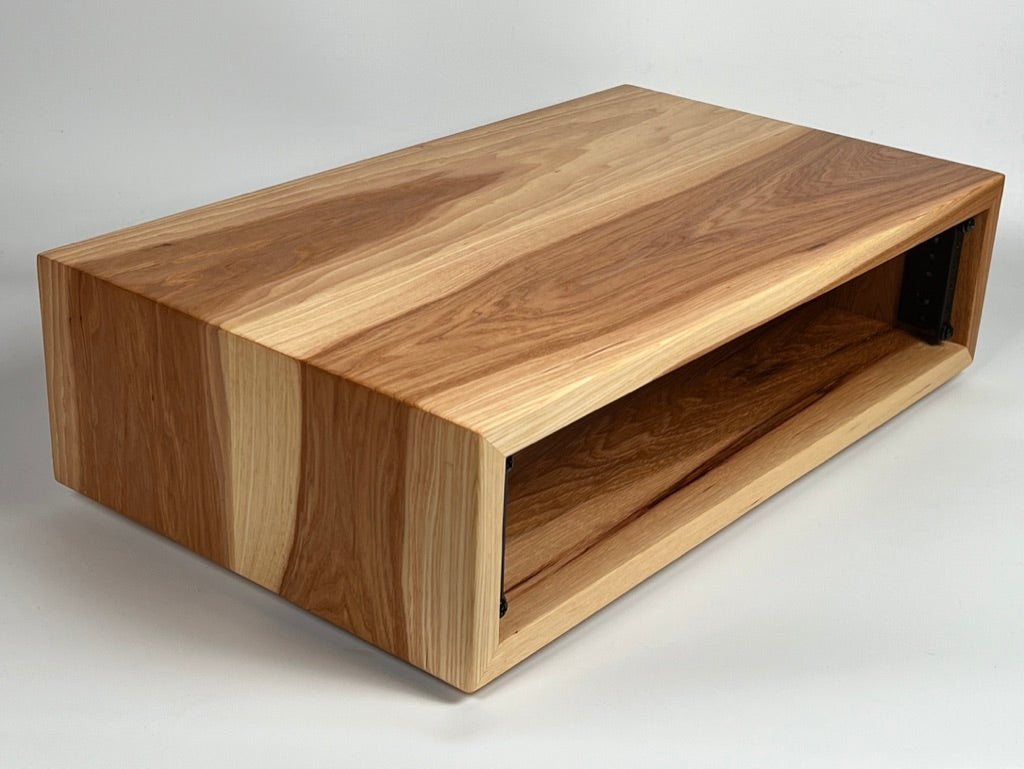

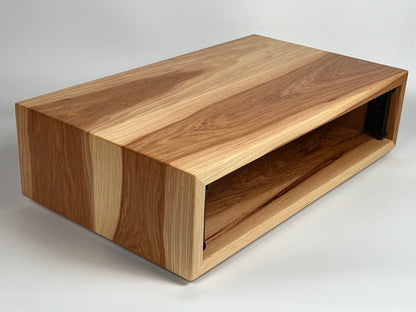

Studio Rack - Solid Hickory for 19" Rack-mount Equipment
P R O D U C T ∙ D E T A I L S
It's time to up your game and slide your gear into a 19" hickory equipment rack, built from premium grade solid hickory lumber. We use only solid wood for the strength, beauty, and variation of natural wood grain that you just can't get with veneers. You can configure these racks in a variety of sizes and options to build the perfect rack for your studio, office or living room. Also available in walnut, maple, quartersawn white oak, and cherry.

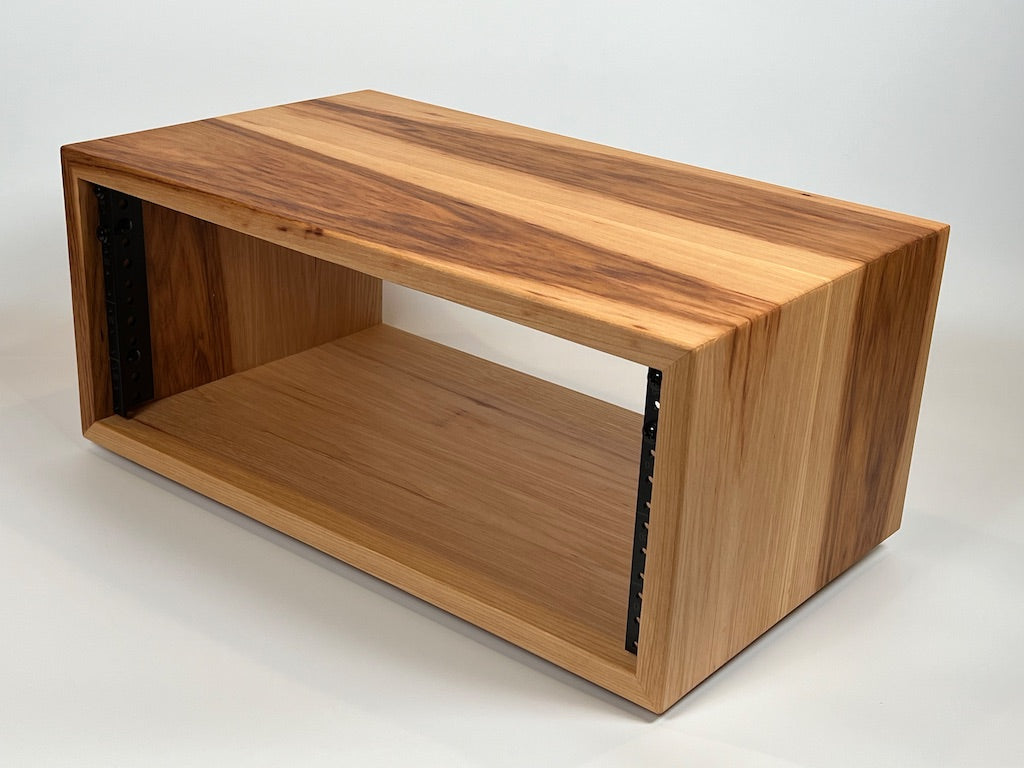

This unit's design adds mind-bending mitered corners to our cabinet lineup. Since all corners are mitered, we can use a single, continuous plank for both sides and the top surfaces, creating a waterfall effect. If you like continuous wood grain and a contrast in wood tones from blonde to reddish-brown, this one might be for you.
Perfect for all rack-mount equipment, whether yours is:
• audio gear
• video gear
• network devices
• server cases
• a mix of any of the above
S T A N D A R D ∙ S I Z E ∙ O P T I O N S
• 1U to 16U (rack units) tall
• 8, 12, 16, or 20 inches deep
• standard 19" rack mount width
C O N S T R U C T I O N ∙ D E T A I L S
• constructed from 3/4" solid lumber

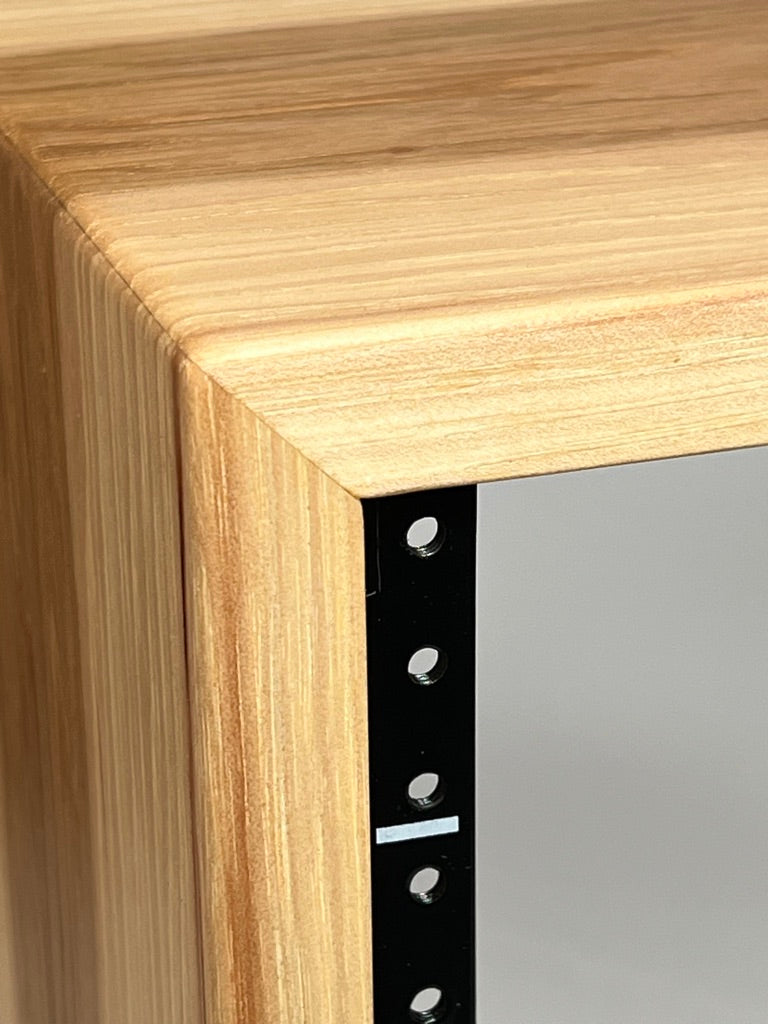

• all sides are joined with a 45 degree miter, making the seam almost disappear
• front and top edges are eased to about 1/8" radius
• bottom is fitted with non-marring rubber feet, but can be omitted (add personalization note) or upgraded to adjustable levelers (see link below).

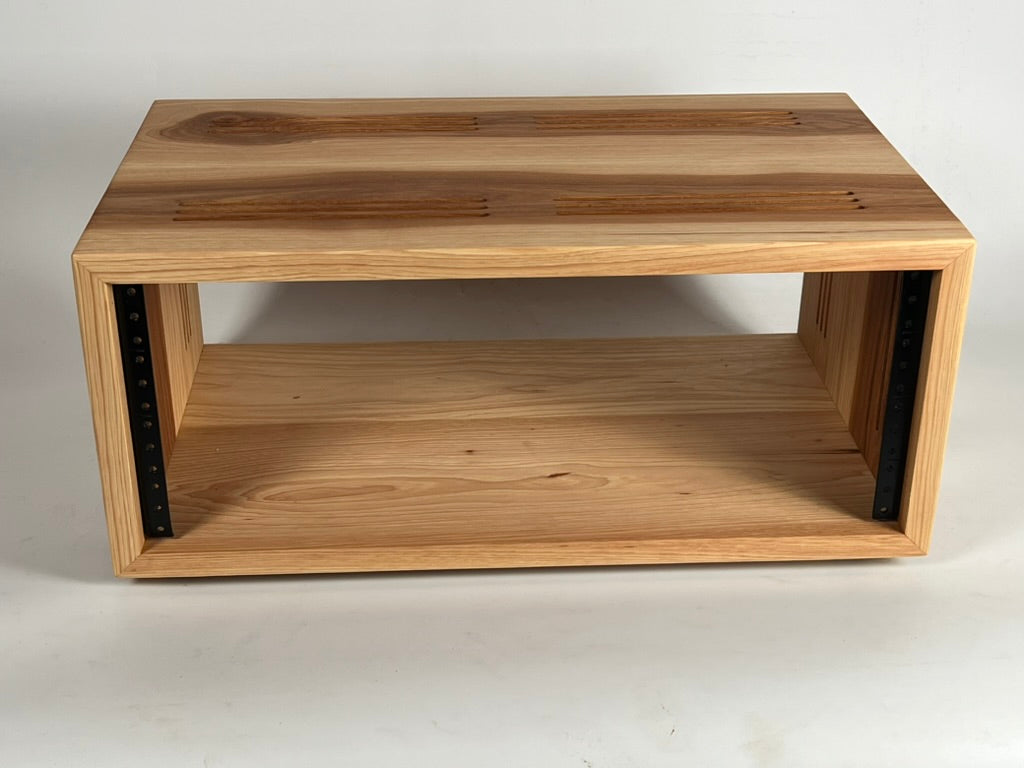

• rack rails are recessed 1/2" from the front edge of the cabinet sides, and spaced 1/8" from the top and bottom
• comes fully assembled and ready to use
R A C K ∙ D I M E N S I O N S
• width for all sizes - 20-5/8"
• depth, front to back - 8, 12, 16, or 20 inches deep
• height of cabinet (excluding optional rubber feet)
• 1U - 3.5"
• 2U - 5.25"
• 3U - 7"
• 4U - 8.75"
• 5U - 10.5"
• 6U - 12.25"
• 8U - 15.75"
• 10U - 19.25"
• 12U - 22.75"
• 14U - 26.25"
• 16U - 29.75"
F I N I S H I N G ∙ P R O C E S S
Our multi-stage finishing process uses all natural products (known as zero-VOC), highlighting the rich, dark color that makes walnut wood so popular for furniture building.
• hand rubbed with an all natural Danish oil
• primary ingredients are linseed oil and bees wax
• enhances the grain and natural dark pigment• eliminates harmful and irritating vapors and fumes
• results in a satin sheen
U P G R A D E S ∙ A D D - O N S
We also offer a number of add-ons and upgrades to take your rack to the next level:
• rear rails
• extra screws (4 are always included for free with your rack order)
• square-hole rails and cage nuts
• matching wood filler panels
• blank filler panels
• vented filler panels

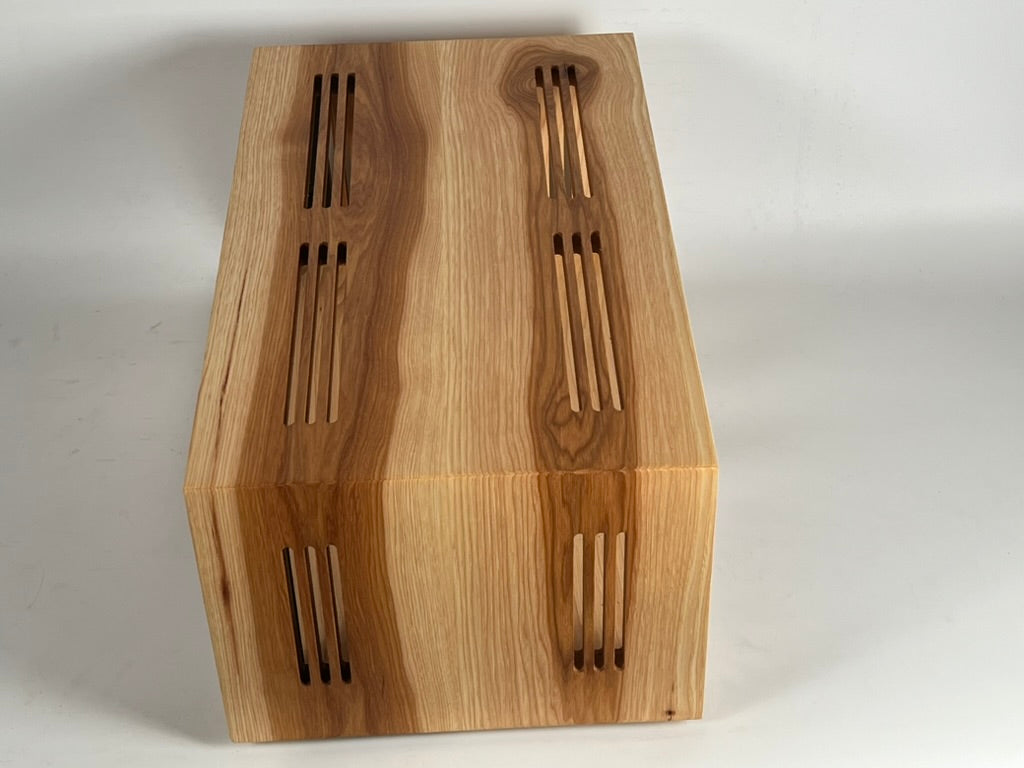

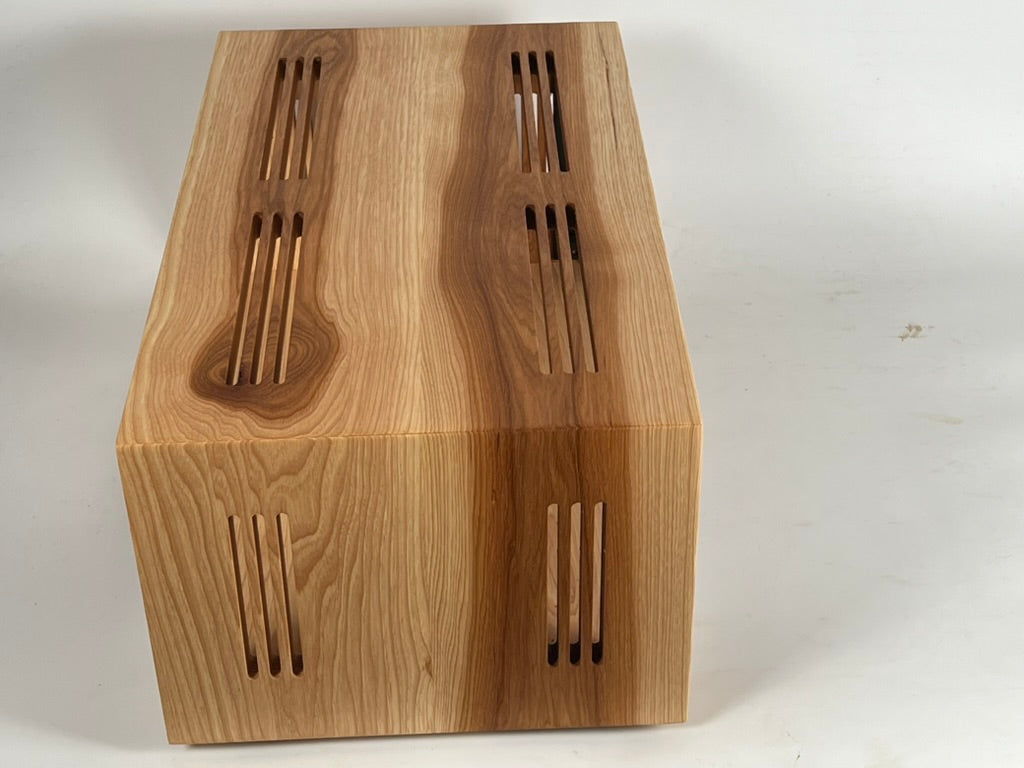

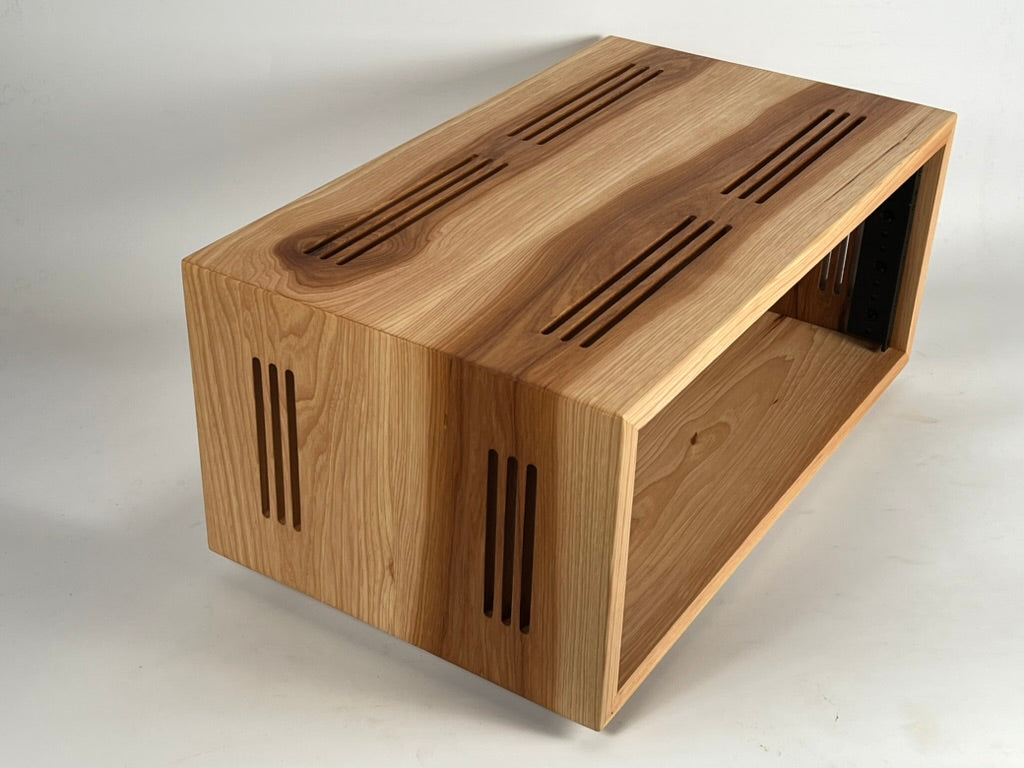

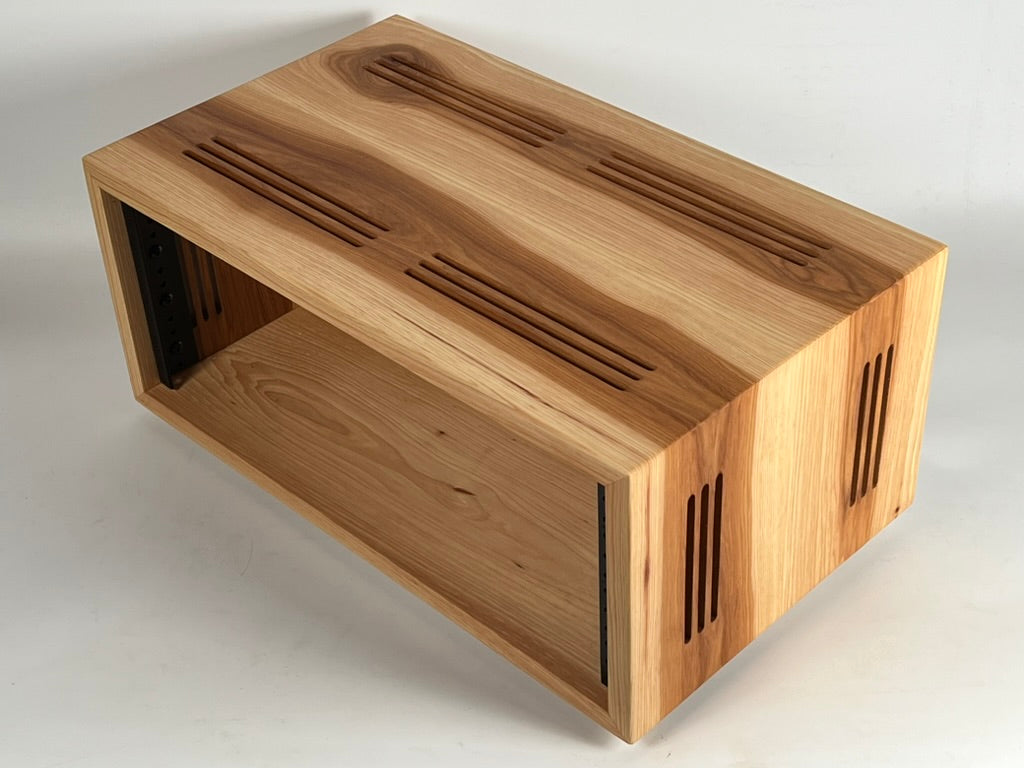

• venting slots directly in the wood
• locking caster wheels
• shelves
• leveling feet
• back-plane power distribution units
C U S T O M ∙ R E Q U E S T S
If you don't see the setup size you need in the drop-downs above, send me a message with your request and I'll do what I can to accommodate you. Ask about availability of other types of wood. I have local access to over 100 domestic and exotic wood species, so almost anything is possible.
S H I P P I N G
Shipping is FREE to the 48 contiguous United States. For Alaska and Hawaii customers, please message me for a shipping quote before ordering.
P A Y M E N T
We accept all major credit cards, as well as Paypal and Venmo.
Free shipping to 48 contiguous states
Current lead-time for this rack is 6 to 8 weeks
Satisfaction Guaranteed
Makes a great gift
Studio Rack - Solid Hickory for 19" Rack-mount Equipment
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
More Photos

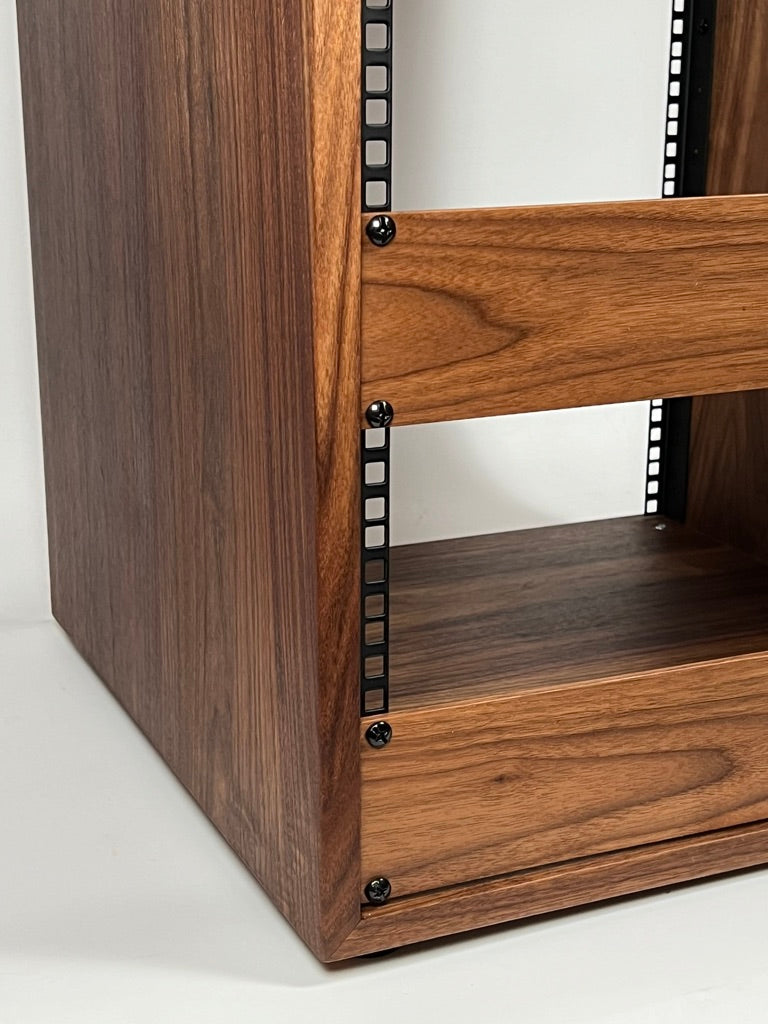

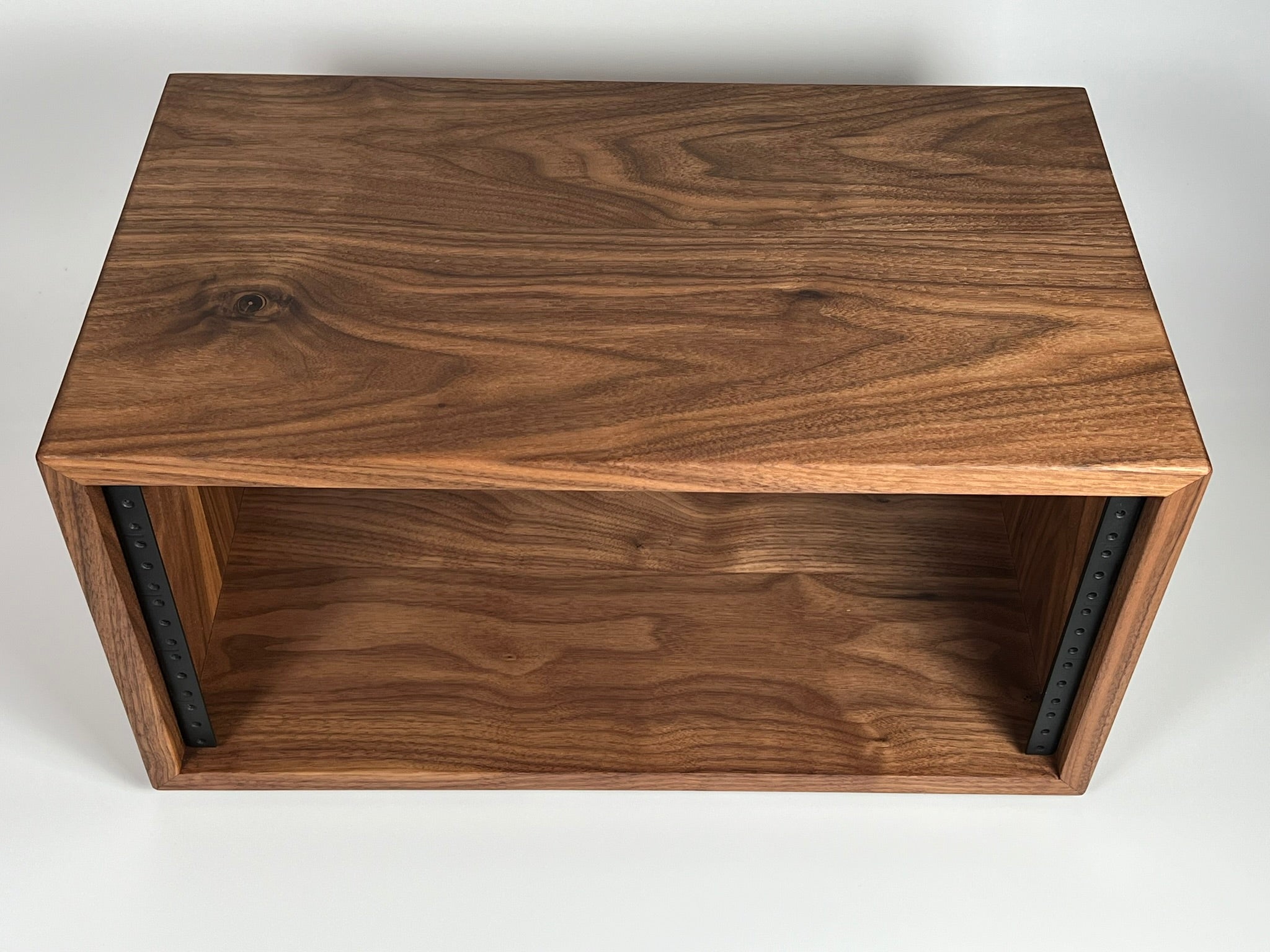

Just sharing more photos of various configurations from my shop. This is a sampling to hopefully provide some inspiration for your next project.
